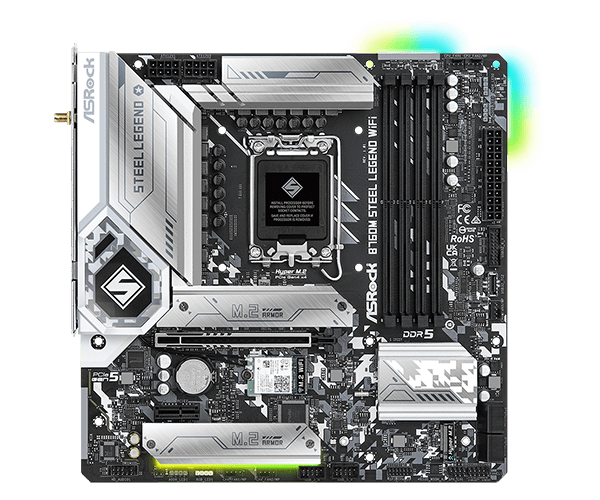

Mainboard ASRock B760M Steel Legend WiFi QSD
2.490.000₫
| Loại sản phẩm | Mainboard Bo Mạch Chủ |
| Hãng sản xuất | ASRock |
| Model | B760M Steel Legend Wifi |
| Hỗ trợ CPU |
– Hỗ trợ hệ thứ 13 & 12 ( LGA1700 ) Bộ xử lý Intel Core
– Hỗ trợ Công nghệ Intel Hybrid – Hỗ trợ Công nghệ Intel Turbo Boost Max 3.0 – Hỗ trợ Intel Thermal Velocity Boost (TVB) – Hỗ trợ Công nghệ tăng cường thích ứng Intel (ABT) – Hỗ trợ Công cụ ASRock Hyper BCLK
|
| Chipset | Intel B760 |
| RAM | – Công nghệ bộ nhớ kênh đôi DDR5 – 4 khe cắm DIMM DDR5 – Hỗ trợ bộ nhớ DDR5 non-ECC, un-buffered lên đến 7200+(OC) * – Tối đa. Dung lượng bộ nhớ hệ thống: 128GB – Hỗ trợ Intel® Extreme Memory Profile (XMP) 3.0 |
| BIOS | BIOS hợp pháp AMI UEFI 128Mb có hỗ trợ GUI |
| Đồ họa |
– Intel® Xe Graphics Architecture (Gen 12)
– 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Âm thanh | Âm thanh 7.1 CH HD (Codec âm thanh Realtek ALC897) Nahimic Audio |
| LAN |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Phantom Gaming LAN Software
|
| Mạng không dây |
– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth + High speed class II – Supports MU-MIMO |
| Khe mở rộng | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Lưu trữ | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | – 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) – 1 x USB 3.2 Gen2 Type-A (Rear) – 6 x USB 3.2 Gen1 (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
| Cổng kết nối bên trong | – 1 x eDP Signal Connector – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Cổng kết nối phía sau | – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 4 x USB 3.2 Gen1 Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Kích thước | ATX: 24,4 cm x 24,4 cm |
| Chứng chỉ | FCC, CE ErP / EuP sẵn sàng (cần có nguồn điện sẵn sàng ErP / EuP) |
