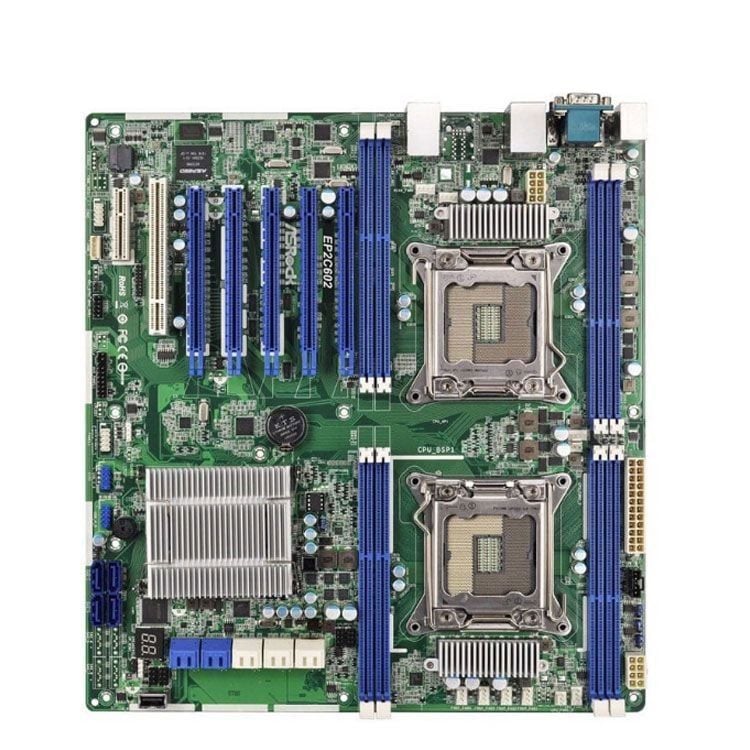

Mainboard Asrock EP2C602
5.450.000₫
THÔNG SỐ KỸ THUẬT:
| Thông tin kích thước | |
| Form Factor | – SSI EEB |
| Kích thước | – 12” x 13” (30.5 cm x 33 cm) |
| Thông tin hệ thống | |
| CPU | – Intel® Xeon® processor E5-1600/2600/4600 & v2 series – Supports Hyper-Threading Technology
Intel Xeon E5-1600 hỗ trợ trên 1 socket
|
| Socket | – Dual Socket R (LGA2011) |
| Power Design | – 6 +1 Power Phase Design |
| Chipset | – Intel® C602 |
| Bộ nhớ hỗ trợ | |
| Dung lượng hỗ trợ | – 8x 240-pin DDR3 DIMM slots – Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM |
| Loại Ram | – Quad Channel DDR3 – Hỗ trợ DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM |
| Voltage | – 1.5V, 1.35V |
| Khe cắm mở rộng | |
| PCIe 3.0 x 16 | – 5 slots – 3 x PCIE3/PCIE6/PCIE7 : x16 mode – 1 x PCIE4: x8/x0 mode – 1 x PCIE5: x16/x8 mode |
| PCIe 3.0 x 4 | – 1 slot |
| PCI | – 1 slot |
| Công lưu trữ | |
| SATA Controller | – Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and “Hot Plug” functions |
| Additional Storage Controller | – Marvell SE9230: 4 x SATA3 6.0 Gb/s, hỗ trợ RAID 0, 1, 10, NCQ, AHCI and “Hot Plug” functions |
| Ethernet | |
| Chuẩn LAN | – Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller | – 2 x Intel® 82574L – Supports Wake-On-LAN – Supports Energy Efficient Ethernet 802.3az – Supports Dual LAN with Teaming function* – Supports PXE
* Intel® 82574L discontinues official driver support for Microsoft® Windows® 2012 R2 (x64)
|
| Management | |
| BMC Controller | – ASPEED AST2300 |
| IPMI Dedicated GLAN | – 1 x Realtek RTL8211E for dedicated management LAN |
| Features | – Watch Dog – NMI |
| Đồ họa | |
| Controller | – ASPEED AST2300 |
| VRAM | – DDR3 16MB |
| Cổng ra | – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz |
| Cổng I/O phía sau | |
| PS/2 KB/Mouse | – 2 |
| VGA Port | – 1 x D-Sub |
| USB 2.0 Port | – 2 |
| Lan Port | – 2 x RJ45 Gigabit Ethernet LAN ports – 1 x RJ45 Dedicated IPMI LAN port – LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | – 1 (COM1) |
| Cổng kết nối bên trong | |
| COM Port Header | – 1 (COM2) |
| Auxiliary Panel Header | – 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM Header | – 1 |
| Thermal Sensor Header | – 1 |
| IPMB Header | – 1 |
| Buzzer | – 1 |
| Fan Header | – 8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin)
*CPU fan headers have 3-pin and 4-pin ones. Two types couldn’t be used at the same time.
|
| ATX Power | – 1 (24-pin) + 2 (8-pin) |
| USB 2.0 Header | – 2 (each support 2 USB 2.0) |
| Type A USB 2.0 Port | – 1 |
| Front Panel | – 1 |
| Speaker | – 1 |
| Dr. Debug with LED | – 1 |
| BIOS hệ thống | |
| Kiểu BIOS | – 64Mb AMI UEFI Legal BIOS |
| Tính năng BIOS | – Plug and Play (PnP) – ACPI 1.1 Compliance Wake Up Events – SMBIOS 2.3.1 Support – DRAM Voltage Multi-adjustment – ASRock Instant Flash |
| Quản lý phần cứng | |
| Temperature | – CPU Temperature Sensing – System Temperature Sensing |
| Fan | – CPU/Rear/Front Fan Tachometer – CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) – CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | – Voltage Monitoring: CPU1/2, DRAM1/2, VTT1/2, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB |
| Hệ điều hành hỗ trợ | |
| Hệ điều hành | Microsoft® Windows® – Server 2008 R2 (x64) – Server 2012 (x64) – Server 2012 R2 (x64) Linux – RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) – CentOS 5.5 / 6.4 (x32 and x64) – SUSE Enterprise Linux Server 11 SP1 (x32 and x64) – FreeBSD 9.1 (x32/x64) – Fedora core 18 (x64) – Ubuntu 12.04/12.10 (x64) Virtual – VMWare® ESXi 5.1 (Marvell SE9230 và Marvell SE9172 không có driver hỗ trợ VMWare) |
| Phụ kiện đi kèm | |
