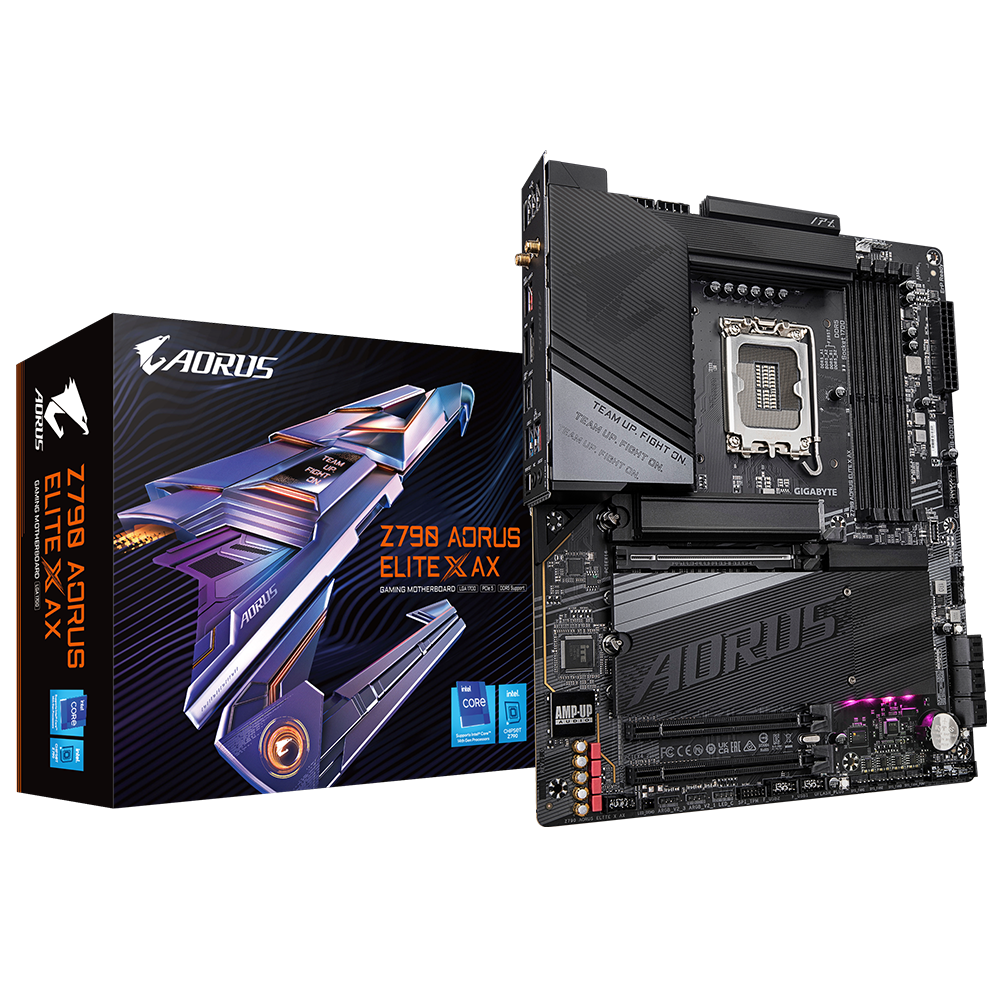

Mainboard Gigabyte Z790 Aorus Elite X AX | Intel Z790, Socket 1700, ATX, 4 khe DDR5

8.780.000₫

Supports Intel® Core™ 13th and next-gen processors
Digital twin 16+1+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：M.2 slots with quick release design
UC BIOS：User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
Precision Audio：ALC1220 & Audiophile Grade Capacitors

Đặc điểm nổi bật Đánh giá Tư vấn & bán hàng qua Facebook

Thông số	Chi tiết
Hãng sản xuất	MSI
Chipset	Intel® B760M
Socket	LGA1700
RAM	DDR5
Hỗ trợ tối đa RAM	256GB
Khe cắm PCI-E	2x PCI-E x16, 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Kết nối	- 2.5G LAN - Intel® Wi-Fi 6E - Bluetooth 5.3
Khe cắm M.2	2x M.2 (M.2_1: PCIe 4.0 x4, M.2_2: PCIe 4.0 x4/SATA)
Âm thanh	- Realtek® RTL8125BG 2.5G LAN - Intel® Wi-Fi 6E
Mạng	- Keyboard / Mouse - DisplayPort<br> - USB 3.2 Gen 1 5Gbps (Type-A) - 2.5G LAN<br> - Wi-Fi / Bluetooth - USB 2.0<br> - HDMI™ - USB 3.2 Gen 2 10Gbps (Type-A) -Audio Connectors
Cổng I/O	- Keyboard / Mouse - DisplayPort - USB 3.2 Gen 1 5Gbps (Type-A) - 2.5G LAN - Wi-Fi / Bluetooth - USB 2.0<br> - HDMI™ - USB 3.2 Gen 2 10Gbps (Type-A) - Audio Connectors
Kích thước	mATX (243.84mmx243.84mm)
Trọng lượng	Đang cập nhật
Tính năng khác	Đang cập nhật

Model	PRIME B760M-A DDR4
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC) /4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel^® 13^th & 12^th Gen Processors 1 x PCIe 4.0 x16 slot Intel^®B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel^® 13^th & 12^th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel^® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
Cổng kết nối (Back Panel)	2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI^® ports 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	1 x Realtek 2.5Gb Ethernet
Kích cỡ	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm

Thông số	Chi tiết
Hãng sản xuất	ASUS
Chipset	Intel® H610
Socket	LGA1700
RAM	DDR4
Hỗ trợ tối đa RAM	2 x DIMM, Max. 64GB, DDR4
Khe cắm PCI-E	1 x PCIe 4.0 x16 slot 1 x PCIe 3.0 x1 slot
Kết nối	1 x Realtek 1Gb Ethernet
Khe cắm M.2	1x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Âm thanh	Realtek 7.1 Surround Sound High Definition Audio CODEC
Mạng	Realtek Gigabit LAN
Cổng I/O	2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI^® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Kích thước	mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Trọng lượng	-
Tính năng khác	ASUS TUF PROTECTION ASUS Q-DESIGN ASUS Thermal Solution ASUS Lightning Control

Thông số	Chi tiết
Hãng sản xuất	ASUS
Chipset	Intel® H510
Socket	LGA1200
RAM	DDR4
Hỗ trợ tối đa RAM	2 x DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz
Khe cắm PCI-E	2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Kết nối	1 x Intel® 1Gb Ethernet
Khe cắm M.2	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Âm thanh	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC
Mạng	Realtek Gigabit LAN
Cổng I/O	2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Kích thước	microATX 22,6cm x 20,3cm
Trọng lượng	-
Tính năng khác	ASUS 5X PROTECTION III ASUS Q-DESIGN ASUS Thermal Solution ASUS Lightning Control

Thông số	Chi tiết
Hãng sản xuất	Asrock
Chipset	Intel B760
Socket	LGA 1700
CPU hỗ trợ	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT)
RAM	DDR4
Hỗ trợ tối đa RAM	128GB
Khe cắm PCI-E	1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* 1 x PCIe 4.0 x1 Slot (PCIE2)*
Kết nối	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Khe cắm M.2	2
Card đồ họa	- Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, hỗ trợ HDCP 2.3 and max. độ phân giài lên đến 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), hỗ trợ HDCP 2.3 và tối đa độ phân giải lên đến 8K 60Hz / 5K 120Hz
Âm thanh	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
USB	- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front)
Cổng I/O	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
Bảng điều khiển phía sau	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Kích thước	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Trọng lượng	-
Tính năng khác	Thiết kế pha điện 7+1+1 Polychrom RGB Sync 802.11ax (WiFi 6E) + Bluetooth 5.3 M.2 Key-E Module Cap
